Operation Example

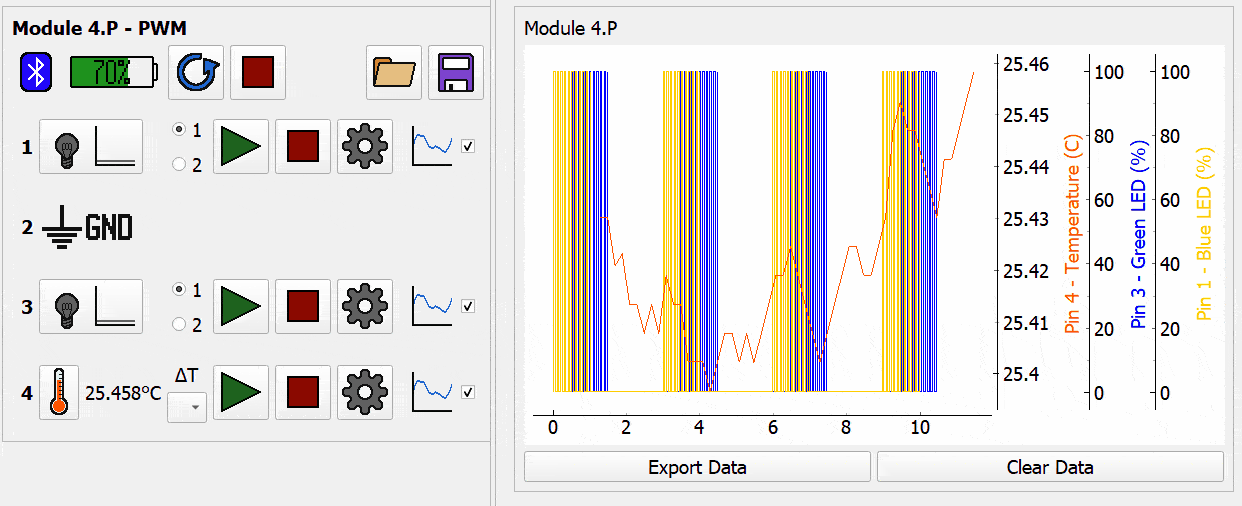

Here is what a connected module with two LEDs stimulating and one NTC recording temperature looks like:

Example of real data

Module Sidebar

The Module Sidebar provides basic information on connected modules and allows for a few basic actions.

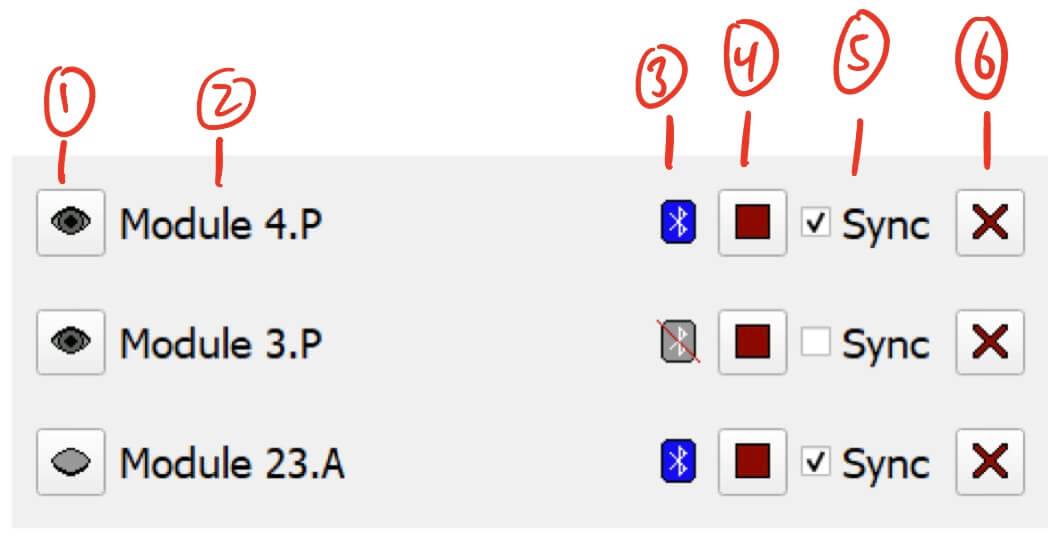

The module sidebar

  1. Visibility Button - Toggles the visibility of the module.
    • This will hide/show the module and its graph.
  2. Module Name - Displays the module’s name.
    • The name contains the module number and the module type. There are two module types:
      • P for PWM - Only supports pulse-width modulation at 3.3v.
      • A for Analog - Allows for voltage output from 0v-3.3v
    • You can hover over the name to see which serial port the module is connected through.
  3. Connection Status - Shows whether the module is connected via Bluetooth or not.
  4. Stop Everything - Stops every pin on the module.
  5. Sync - Syncs multiple modules.
    • When two or more modules are synced, any command that is sent to one module is sent to the others.
    • For example, starting Pin 1 on one module will start Pin 1 on al synced modules.
    • Be careful when syncing PWM and Analog modules, as PWM settings will not work on an Analog module, and vice versa.
  6. Remove Module - This will remove the module from the GUI.
    • This is useful if you have a module that you previously connected, but is now disconnected and you do not need it on the GUI anymore.
    • Disconnected modules will reappear if they are powered on or send a message to the GUI.

Module Controllers

The Module Controllers allow for control of multiple modules.

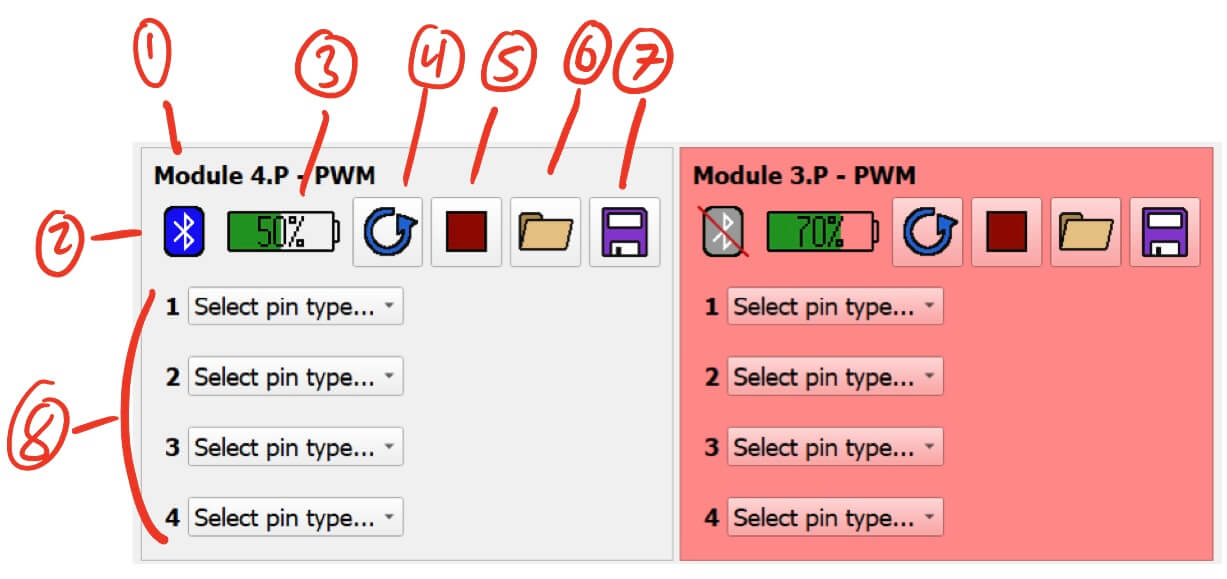

The module controller

  1. Module Title - Displays the module name and the module type.
  2. Connection Status - Shows whether the module is connected via Bluetooth or not.
    • If the module is disconnected, the controller will turn red such as Module 3.P on the right. The module’s graph will also turn red.
  3. Battery Percentage - Shows the approximate battery percentage remaining on the module.
    • You can hover over the icon for a more detailed percentage and battery voltage measurement.
    • The battery percentage is updated every 5 seconds.
  4. Reset - Resets the module
  5. Stop Everything - Stops every pin on the module.
  6. Open Config - Opens a saved module config file.
    • NOTE: You can use a single config file for other modules of the same type. However, you cannot mix types, such as using a PWM config file for an Analog module.
  7. Save Config - Saves the current module and pin settings as a .json config file.
  8. Pin Control - These control individual pins on the module.

Module Graphs

The Module Graphs display data from the modules.

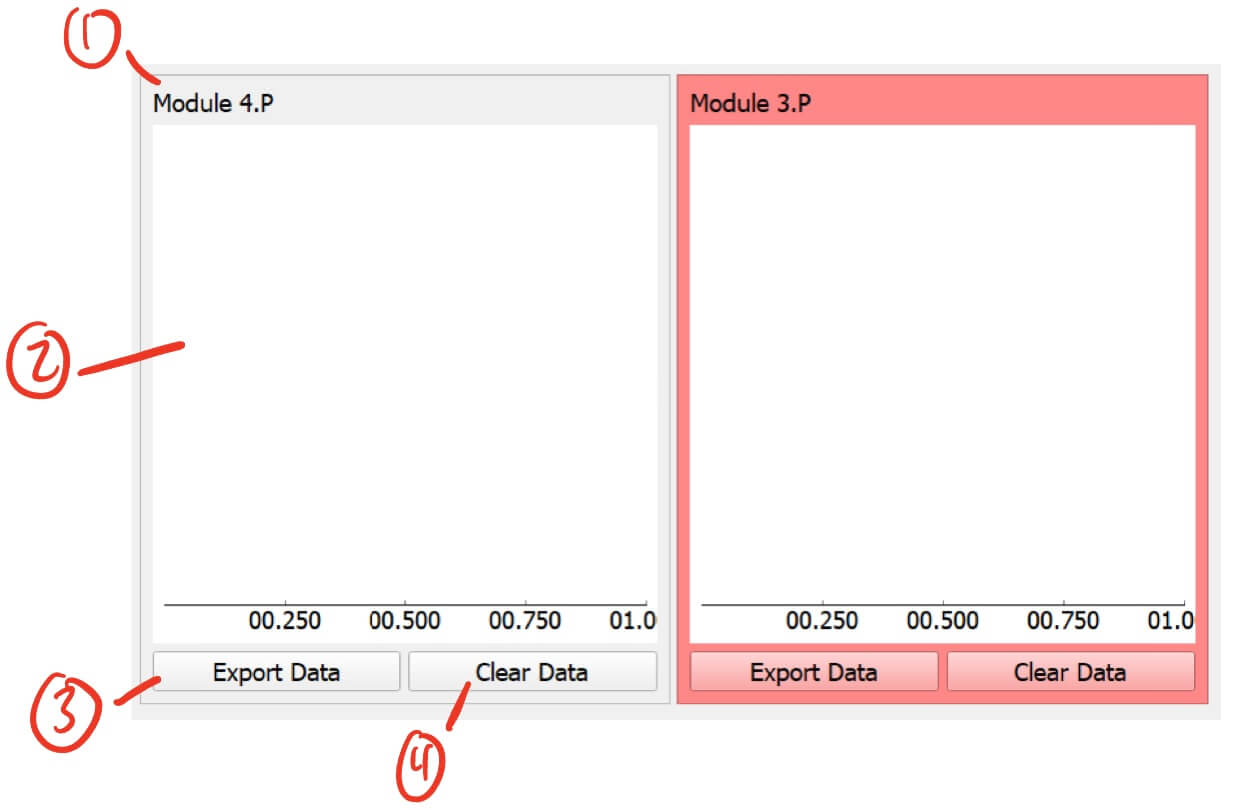

The module graphs

  1. Module Name - Displays the module’s name.
  2. Module Graph - Data and events are shown here (see the example below).
  3. Export Data - Exports the data for this module.
    • The data will be automatically exported into a folder, so you will have to select the directory where you want that folder to be created.
  4. Clear Data - Clears all recorded data for that module.
